The DATCO Hot Roll
The DATCO Hot Roll is the mainstay of our product line. It offers the widest range of features and optional accessories, so it adapts to the widest range of applications. In short, it is a highly customizable solution for your packaging and product assembly projects.
The Hot Roll is built to drive productivity. A variable-speed motor lets you set the exact speed of the roller for greater output, and a microprocessor temperature control displays both the set point and the actual temperature so you always run with accuracy.
Hot Roll Features (All Models)
- 2½" diameter rolls
- Delta microprocessor temperature controls with digital display
- Brother International AC gear motors
- Electronic variable-frequency (variable speed) drive
- Under-temperature protection (the motor cannot start until the unit is up to temperature)

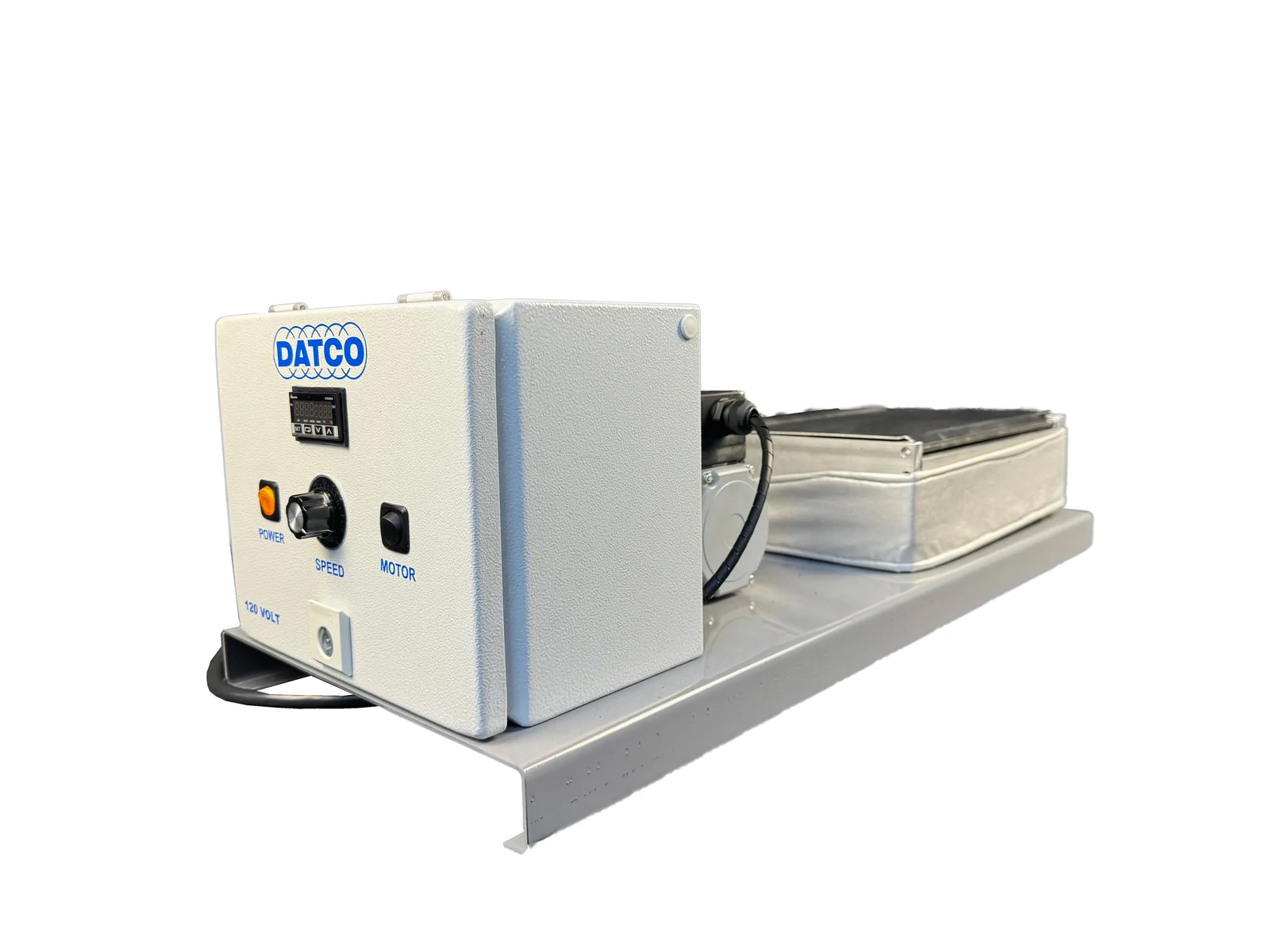

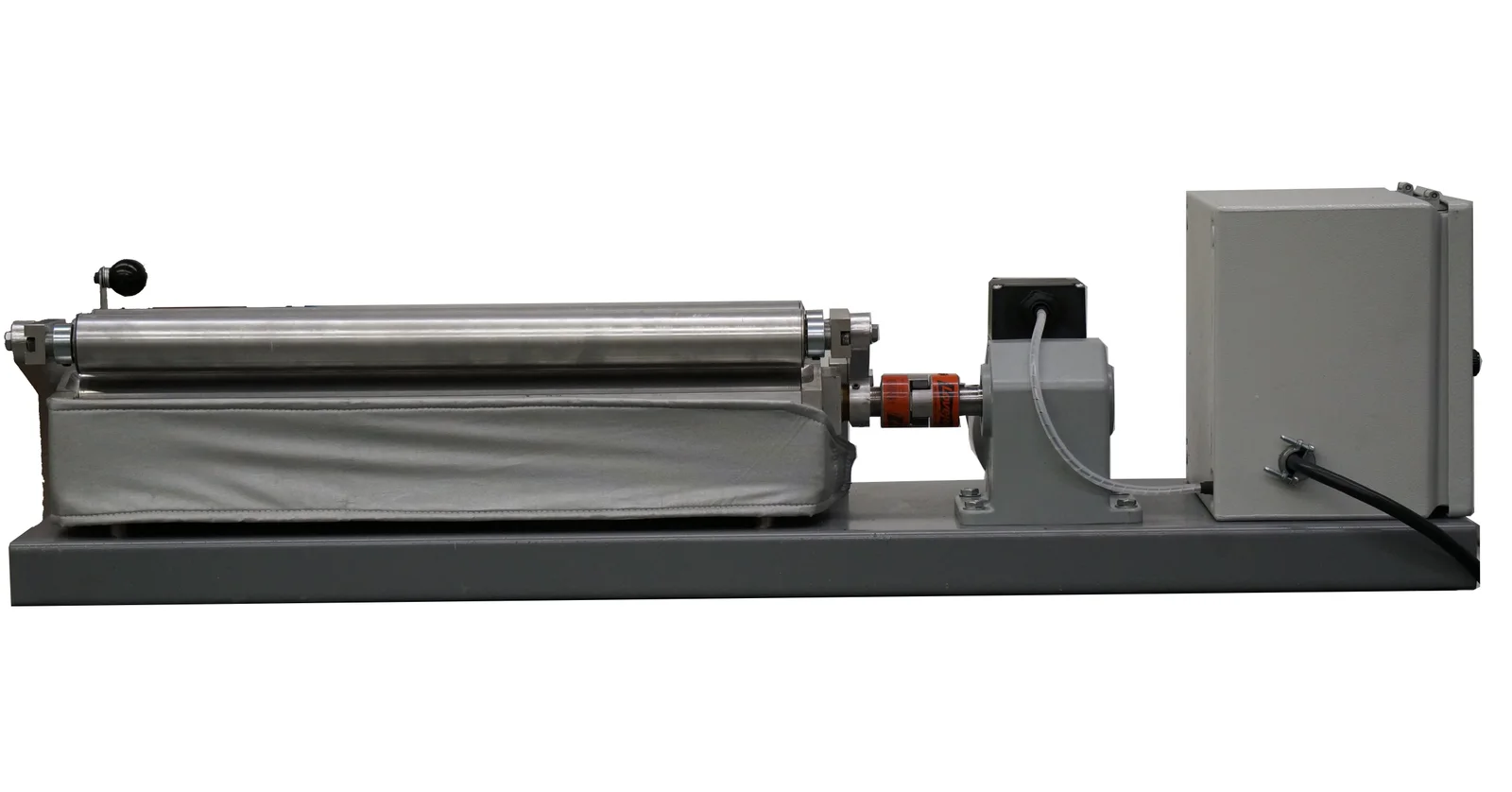

Tabletop Hot Rolls
Tabletop rolls are available in lengths of 6", 12", and 18".
Options & Accessories
- Knurled roll (no extra charge)
- Non-powered single hold-down roll for substrates greater than 1/8" thick
- Non-powered double hold-down roll for substrates less than 1/8" thick
- Pick bars and picks for thin, flexible materials that might wrap the roll
Mounted Hot Rolls
Mounted rolls are available in lengths of 6", 12", 18", 24", 30", and 36", with custom lengths available on request. The rolls are mounted in a custom rolling table. In addition to the many features found on every DATCO Hot Roll, Mounted Hot Rolls include a remote panel box and chain drive, with the motor mounted beneath the unit. Mounted rolls are self-contained, but an optional level control can be added so they can be paired with a bulk melter in high-production applications.
Options & Accessories
- Knurled roll (no extra charge)
- Non-powered single hold-down roll for substrates greater than 1/8" thick
- Non-powered double hold-down roll for substrates less than 1/8" thick
- Powered single hold-down roll for running bulky or heavier substrates
- Powered double hold-down roll for coating thinner die-cut substrates
- Pick bars and picks for running thin, flexible materials that might wrap the roll
- Electronic level control for use with a bulk melter
Specifications
| Weight (6") | 45 lbs (20 kg) |
|---|---|
| Weight (12") | 60 lbs (27 kg) |
| Weight (18") | 70 lbs (32 kg) |
| Dimensions (6") | 24" × 12" × 10" (60 × 30 × 25 cm) |
| Dimensions (12") | 30" × 12" × 10" (76 × 30 × 25 cm) |
| Dimensions (18") | 36" × 12" × 10" (91 × 30 × 25 cm) |
| Roll Speed | 0–40 surface ft/min (0–12 m/min) |
| Temperature Range | Ambient – 450°F (232°C) |
| Power Supply | 6"–18": 120V or 240V · 24"–36": 240V |
