DATCO Filter Roll
Purpose-built for the cut-and-cap filter industry — double hold-down roll for 100% coverage. Available in 6″ and 12″.
Order OnlineThe DATCO Filter Roll
The DATCO Filter Roll is one of our best-selling machines. A variation of the DATCO Hot Roll, it shares many of the same features as our industry-tested Hot Roll line. However, this easy-to-use, cost-effective machine comes standard with a double hold-down roll to better serve the cut-and-cap filter industry.
This winning combination allows customers to run thin filter frames over the roll with 100% coverage, reducing glue waste and the time spent assembling individual filters — all without the need for an additional mat or extra accessories.
Filter Roll Features
- Available in 6″ or 12″ lengths
- The 6″ roll is 750 watts and holds 2 lbs of adhesive; the 12″ roll is 1500 watts and holds 4 lbs of adhesive
- Offered in either 120V or 240V
- 2½″ diameter rolls
- Delta microprocessor temperature controls with digital display
- Brother International AC gear motors
- Electronic variable-frequency (variable speed) drive
- Under-temperature protection (the motor cannot start until the unit is up to temperature)
Tabletop Filter Roll

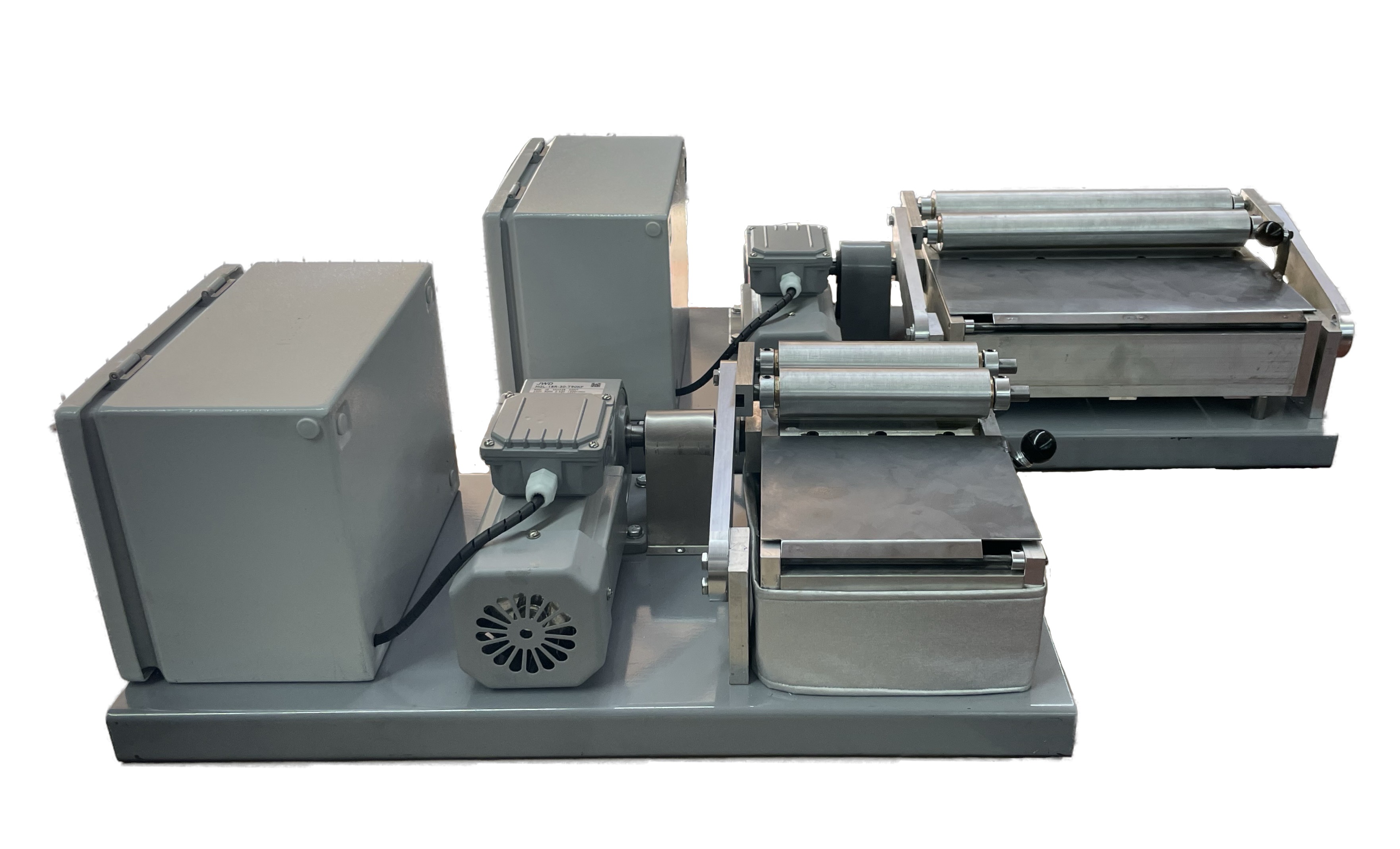

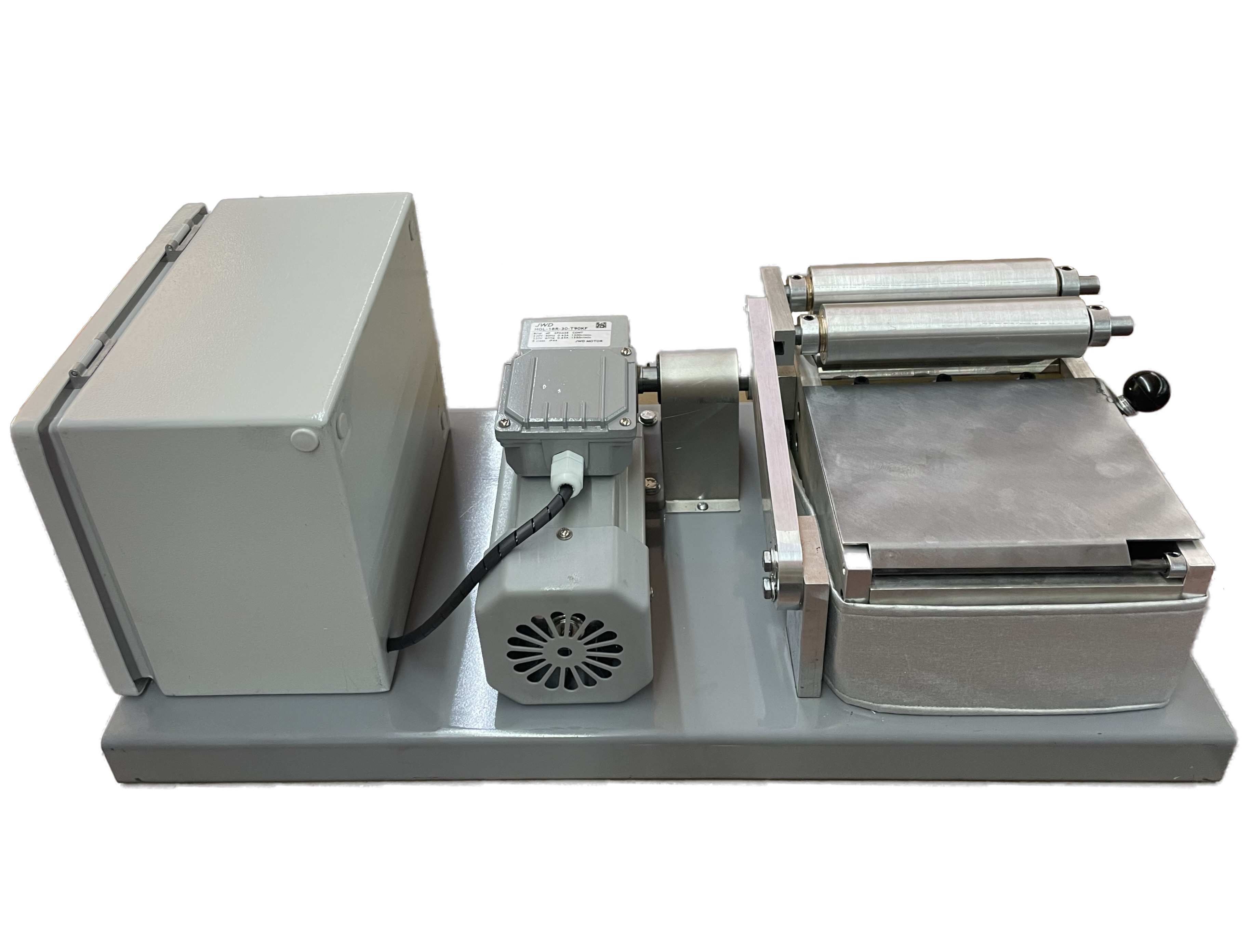

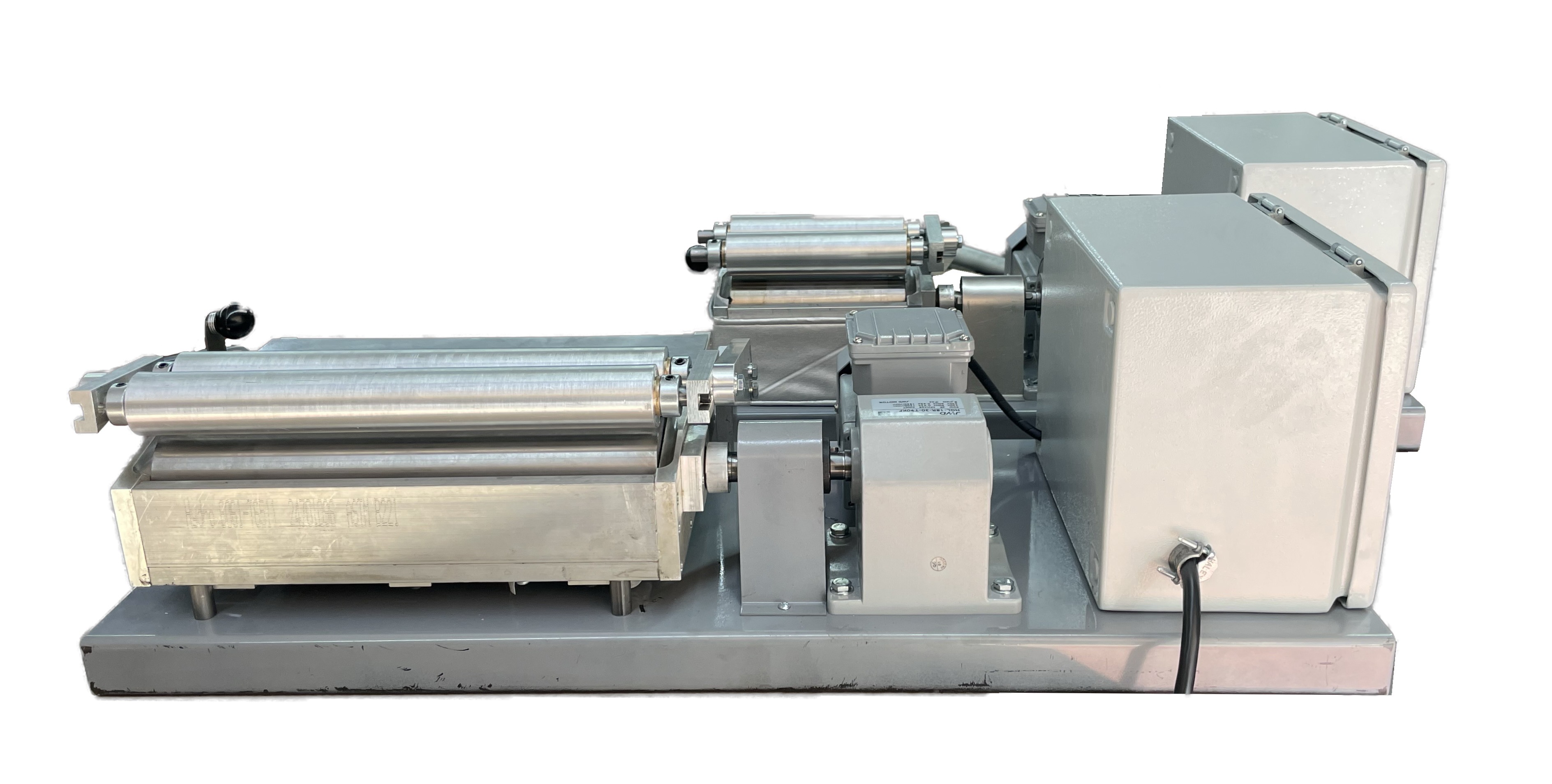

The Filter Roll is purpose-built for the cut-and-cap filter industry. Its standard double hold-down roll lets thin filter frames run over the application roll with full, even coverage in a single pass.

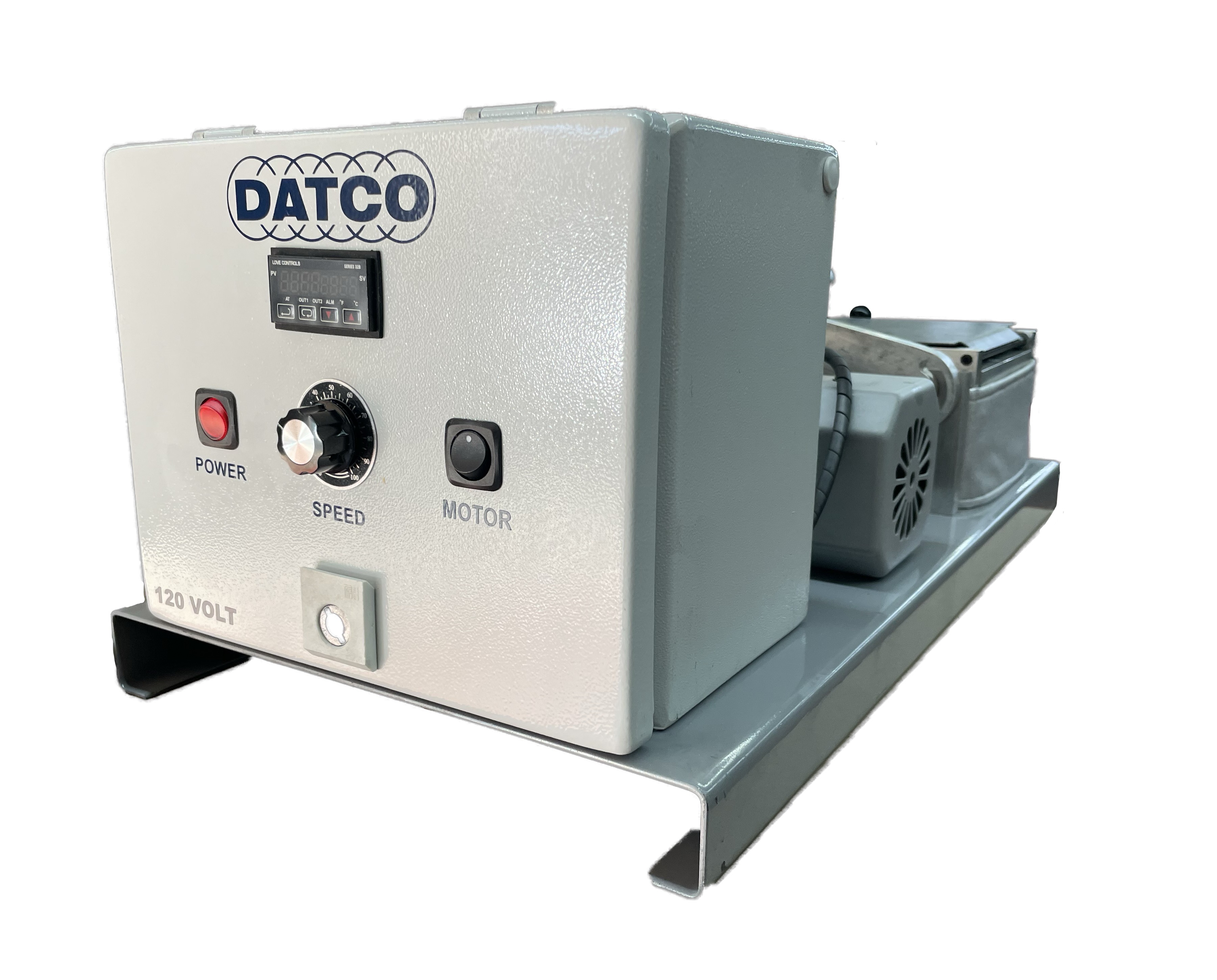

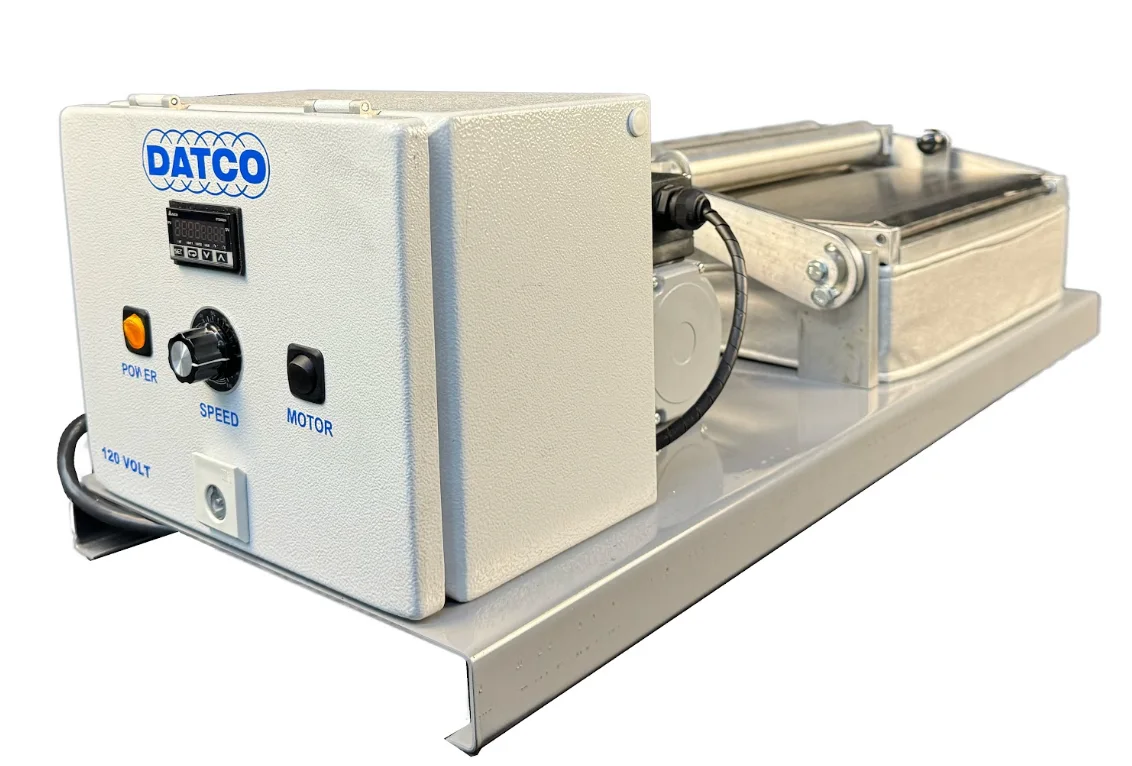

The Delta digital temperature control and variable-speed drive give you precise command over the gluing process, while the compact tabletop footprint fits easily into any production space.
Built to Last

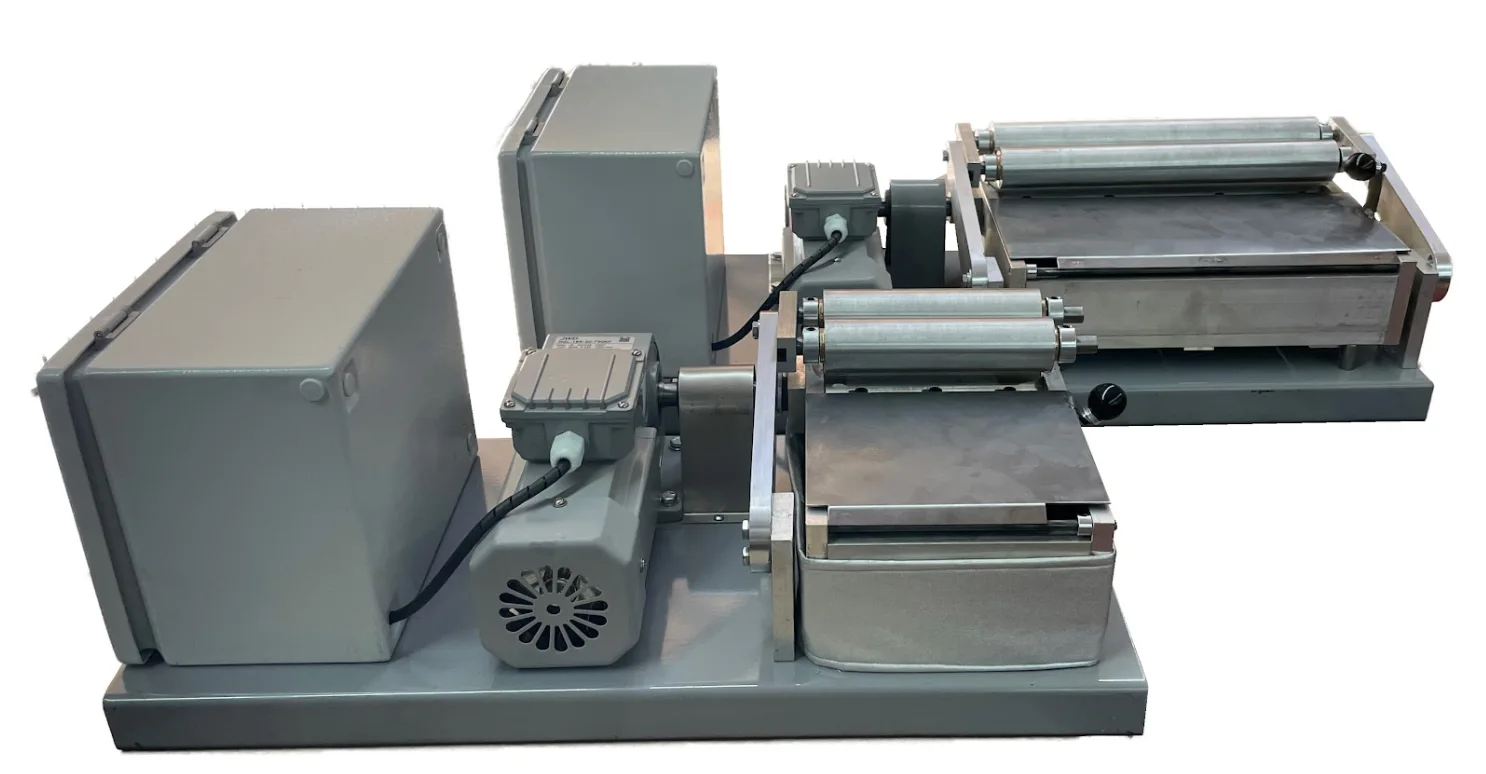

Every Filter Roll is built in our Tennessee machine shop with the same quality and attention to detail that goes into all DATCO equipment. The double hold-down roll is the heart of the design — it ensures 100% coverage on every thin filter frame, eliminating the need for extra mats or post-application touch-ups.
Specifications
| Weight (6″) | 45 lbs (20 kg) |
|---|---|
| Weight (12″) | 55 lbs (23 kg) |
| Dimensions (6″) | 24″ × 12″ × 10″ (60 × 30 × 25 cm) |
| Dimensions (12″) | 30″ × 12″ × 10″ (76 × 30 × 25 cm) |
| Reservoir Volume (6″) | 82 cu in (1,344 cu cm) |
| Reservoir Volume (12″) | 165 cu in (2,704 cu cm) |
| Roll Speed | 0–40 surface ft/min (0–12 m/min) |
| Temperature Range | Ambient – 450°F (232°C) |
| Power Supply | 120V or 240V |
Order Your Filter Roll
Filter Roll — 6"
Double hold-down roll for 100% coverage on thin filter frames. Made in the USA.
Filter Roll — 12"
The 12″ Filter Roll for wider frames — same double hold-down design, 100% coverage.
Volume discounts start at 3 units — contact us for pricing.
